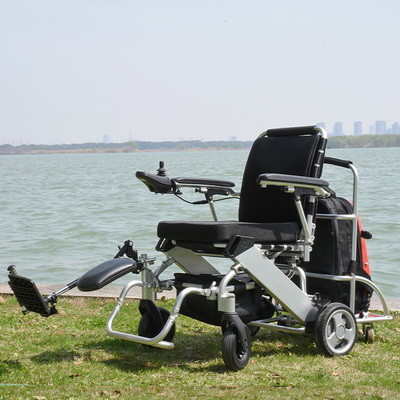

Ultra Strong Frame, Patented design, Foldable Folding Lightweight Portable Power Electric motorized Wheelchair
Model: F309
Description
Our company is committed to providing cost-effective medical products for the elderly and the disabled. The main products are electric wheelchair, manual wheelchair and professional sports wheelchair. So far, our products have been widely recognized in France, Hong Kong China,Malaysia and other countries, and enjoy a high reputation among customers, we are very proud of it.
Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.
The product specifications you cared most
| Net Weight with 1 standard battery pack | 24kg (53 lbs) |
| Max Speed | 6 km/hr (3.7 miles/hr) |
| Maximum Seat Capacity | 100kg (220 lbs) |
| Seat Width | 48cm (19”) between armrests |
| Seat Depth | 450cm (17.7”) |
| Seat Height From Ground (Front) | 49cm (19.3”) |
| Seat Height From Ground (Back) | 47cm (18.5”) |
| Turning Radius | 75cm (29.5”) |
| Folded Size L X H X W | 35cm x 73cm x 58cm (13.8” X 28.7” X22.8”) |
| Opened Size | 94cm x 90cm x 58cm (37” X 35.4” X22.8”) |
| Packing Size | 36.5cm x 78.5cm x 66cm (14.4” X 30.9” X 26”) |
| Max Distance / Full Charge | ~18km with 1 battery (15% less in cold weather)
~36km with Optional 2nd batttery |
| Charge Time (for 1 battery) | 4 hours |
| Slope Capability | 10˚ |
| Battery Type | Soft Pack Polymer Lithium Ion Battery |
| Motor Type | Latest Brushless Motor |
| Motor Power | 180W x 2 |
| Front Wheel | 7” |
| Rear Wheel | 9” |
| Frame Material | Quality Aluminium Alloy |
| Rear Tire Type | Rigid PU tyre |
| Armrest | Raisable |
| Footrest | Foldable |
| Backrest | Foldable |
*Error and uncertainty in measurement
Wheelchair Details
Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
Product Advantage
1. Light Weiht - Frame can be easily lifted. Convenient for transportation and turnover.
2. Raisable armrest - Convenient close to the table for eating or reading & Up and down the wheelchair.
3. Foldable footrest - Convenient for Up and down the wheelchair.
4. Foldable frame - Convenient for transportation and stock.
5. Brushless Motor - Enough power, little wear, little noise, low maintenance rate.
6. Lithium Ion Battery - Quick-release battery, light weight, convenient to carrying and charging.
7. Electromagnetic braking system - Safe and easy to operate, release joystick handle means brake. It is safer not to slide up the slope.
8. Easy to operate - Operation depends on the joystick handle. The front, back ,left and right of the control handle represent the direction of the wheelchair. The wheelchair can turn 360 degrees on the spot. Release joystick handle means brake.
9.Anti-tip wheel - Anti-tip castor wheels at rear for safe use by customers, especially when crossing obstacles and going up hills to play a good protective role.
Our Service
1. Reply your inquiry in 24 working hours.
2. Customized design is available.OEM & ODM are welcomed.
3. Professional engineers & Exclusive and unique solution.
4. Well-trained staffs.
5. Return Policy: For defective goods,please send us the pictures to confirm then we will give you the replacement during warranty period.
6. Warranty :We warrant that this product shall be free from defects in material or workmanship for 2 year from the date of purchase.The warranty of the battery is 18 Months from the date of purchase. The warranty of the motor is 1 year from the date of purchase.This warranty does not apply to any product that has been subject to misuse,abuse,negligence or neglect.Defects caused by tempering ,alterations and /or repairs are not covered by this warranty.
